窄型，坚固，垂直插拔，水平出线，能够承受较大电流 间距0.4 mm，耐高温，耐高湿型可选
· 窄小型设计适于穿孔，电源供电用途用最大可配合AWG#34线缆使用
· 独特W-Point双触点设计，实现高接触可靠性
· 耐高温/高湿度(高压灭菌)
| 间距(mm) | 0.4 |
| 高度 | 1.85 Max (1.65 Nom.) |
| Pin数 | 10，14，20，30，32，35，40，50 |
| 极细同轴线(AWG) | #38，#40，#42，#44，#46 |
| 嵌合类型 | 垂直 |
文件下载
产品目录：CATALOG CABLINE-SS SC

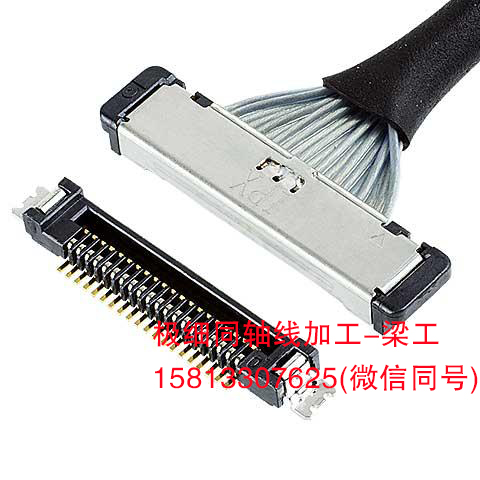

2D图画：2D CABLINE-SS PLUG HOUSING ASSEMBLY 20373
操作手册：MANUAL CABLINE-SS HIM-04001
ASSYMANUAL CABLINE-SS ASM-04001
产品详情
窄小型设计适于穿孔，电源供电用途用最大可配合AWG#34线缆使用
独特W-Point双触点设计，实现高接触可靠性
耐高温/高湿度(高压灭菌)可选
技术参数
| 嵌合类型 | 垂直 |
| Contact pitch | 0.40 mm |
| Height | 1.85 Max (1.65 Nom.) , |
| Depth | 3.00 mm |
| Width Formula | 5.80+(0.4*?p) mm |
| Pin count | 10 14 20 30 32 35 40 50 |
| Micro-Coaxial Cable (AWG) | #38 #40 #42 #44 #46 |
| Discrete Cable (AWG) | #34 #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.25A AC/DC [AWG #40] per contact/up to 50 contacts 0.30A AC/DC [AWG #40] per contact/up to 32 contacts 0.35A AC/DC [AWG #36] Pper contact/up to 50 contacts 0.40A AC/DC [AWG #36] per contact/up to 37 contacts 0.35A AC/DC [AWG #34] per contact/up to 50 contacts 1.00A AC/DC [AWG #34] per contact/up to 2 contacts |
| Applicable Standards (Reference Only) | USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
| Full shielding (ZenShield®) | No |
| Mechanical lock | No |
